elasticsearch8检索流程
Healthy Mind Lv3
 2021-09-09 20:29:22

​ 在es 中涉及到操作最多就是检索，接下来看看检索的源码是怎么个流程，在es Rest请求中我们看到了 **org.elasticsearch.rest.RestController#dispatchRequest(org.elasticsearch.rest.RestRequest, org.elasticsearch.rest.RestChannel, org.elasticsearch.rest.RestHandler) **这个方法 ，这是 es http 请求的总的一个控制器，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
private void dispatchRequest(RestRequest request, RestChannel channel, RestHandler handler) throws Exception {
      ...
       RestChannel responseChannel = channel;
       try {
           if (handler.canTripCircuitBreaker()) {
               inFlightRequestsBreaker(circuitBreakerService).addEstimateBytesAndMaybeBreak(contentLength, "<http_request>");
           } else {
               inFlightRequestsBreaker(circuitBreakerService).addWithoutBreaking(contentLength);
           }
           // iff we could reserve bytes for the request we need to send the response also over this channel
           responseChannel = new ResourceHandlingHttpChannel(channel, circuitBreakerService, contentLength);
           //请求处理主要方法
           handler.handleRequest(request, responseChannel, client);
       } catch (Exception e) {
           responseChannel.sendResponse(new BytesRestResponse(responseChannel, e));
       }
   }

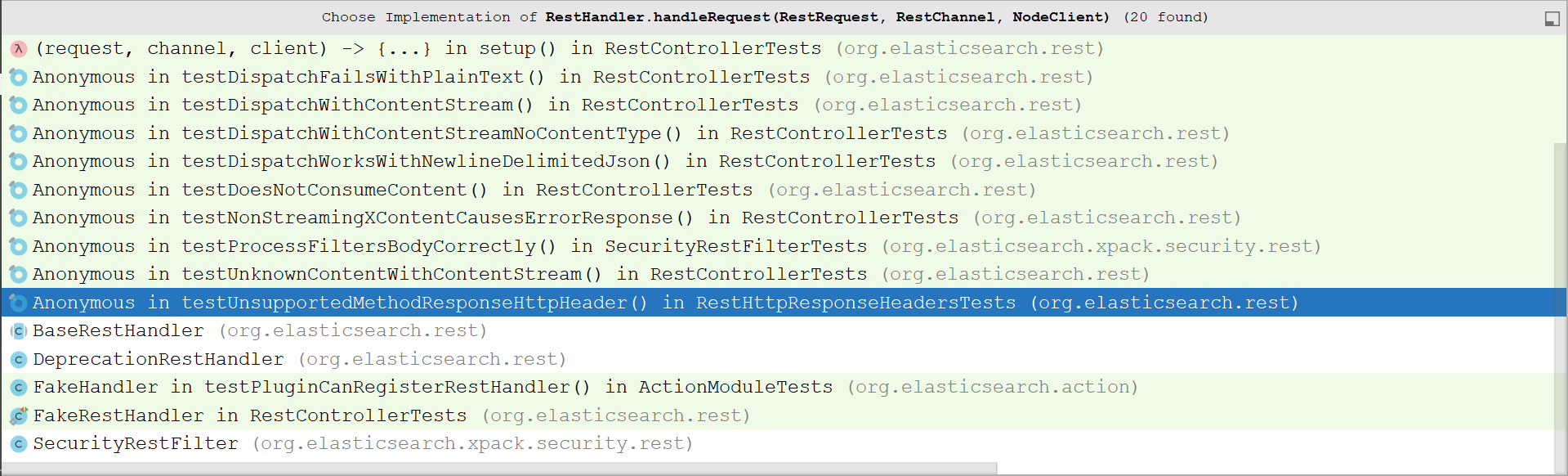

ctrl+alt+B 查看 handleRequest 实现类有哪些，这里有很多实现，但是大部分都是 test 可以看出都是测试用例，所以不是我们需要的，我们 需要看看其他的，可以猜 base 开头的 一般都是 基础实现 org.elasticsearch.rest.BaseRestHandler#handleRequest 当然有时候一次不一定正确。

这个方法代码都有注释，prepareRequest(request, client) 主要方法就是这个了，看看下面都有哪些实现。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@Override
   public final void handleRequest(RestRequest request, RestChannel channel, NodeClient client) throws Exception {
       // prepare the request for execution; has the side effect of touching the request parameters
       final RestChannelConsumer action = prepareRequest(request, client);

       // validate unconsumed params, but we must exclude params used to format the response
       // use a sorted set so the unconsumed parameters appear in a reliable sorted order
       final SortedSet<String> unconsumedParams =
           request.unconsumedParams().stream().filter(p -> !responseParams().contains(p)).collect(Collectors.toCollection(TreeSet::new));

       // validate the non-response params
       if (!unconsumedParams.isEmpty()) {
           final Set<String> candidateParams = new HashSet<>();
           candidateParams.addAll(request.consumedParams());
           candidateParams.addAll(responseParams());
           throw new IllegalArgumentException(unrecognized(request, unconsumedParams, candidateParams, "parameter"));
       }

       if (request.hasContent() && request.isContentConsumed() == false) {
           throw new IllegalArgumentException("request [" + request.method() + " " + request.path() + "] does not support having a body");
       }

       usageCount.increment();
       // execute the action
       action.accept(channel);
   }

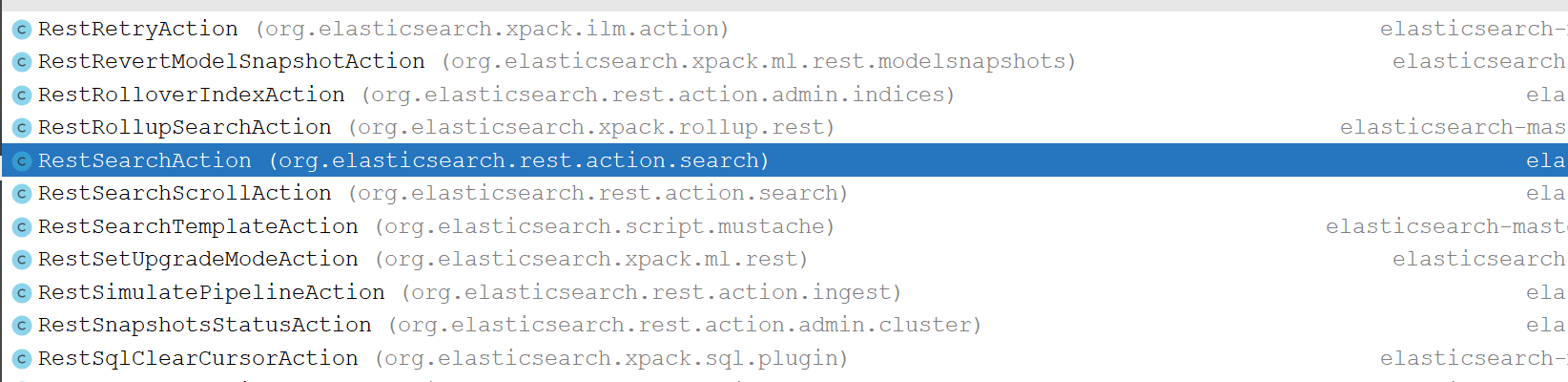

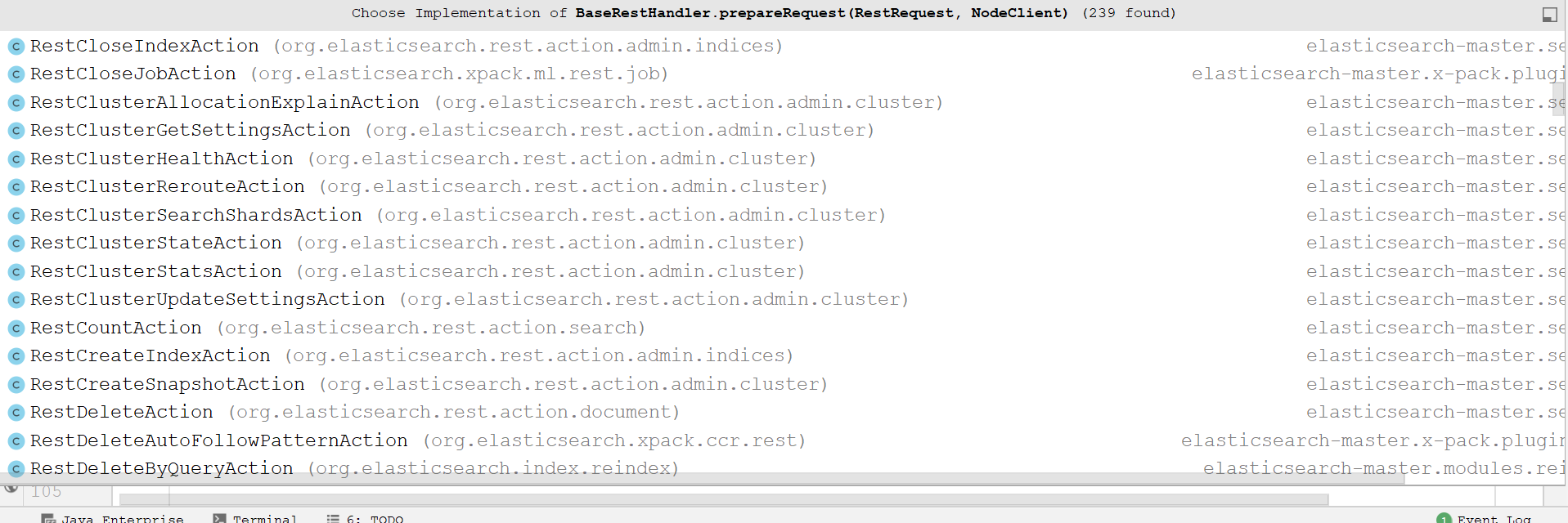

这下面有239个实现，懵逼了有没有，这里我们需要查看RestSearchAction 类，这些类的命名让我们很容就和es的操作进行关联的。

查看如下方法org.elasticsearch.rest.action.search.RestSearchAction#prepareRequest

这里是返回的是一个 RestChannelConsumer 其实和 java.util.function.Consumer 一样的功能

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@Override
   public RestChannelConsumer prepareRequest(final RestRequest request, final NodeClient client) throws IOException {
       SearchRequest searchRequest = new SearchRequest();
       /*
        * We have to pull out the call to `source().size(size)` because
        * _update_by_query and _delete_by_query uses this same parsing
        * path but sets a different variable when it sees the `size`
        * url parameter.
        *
        * Note that we can't use `searchRequest.source()::size` because
        * `searchRequest.source()` is null right now. We don't have to
        * guard against it being null in the IntConsumer because it can't
        * be null later. If that is confusing to you then you are in good
        * company.
        */
       IntConsumer setSize = size -> searchRequest.source().size(size);
       request.withContentOrSourceParamParserOrNull(parser ->
           parseSearchRequest(searchRequest, request, parser, setSize));

       return channel -> {
           // RestStatusToXContentListener 是一个包装类，添加 监听
           //es 中有很多这样的包装 类 例如 org.elasticsearch.action.ActionListener 类
           RestStatusToXContentListener<SearchResponse> listener = new RestStatusToXContentListener<>(channel);
           HttpChannelTaskHandler.INSTANCE.execute(client, request.getHttpChannel(), searchRequest, SearchAction.INSTANCE, listener);
       };
   }

类似 org.elasticsearch.action.ActionListener 类的使用方式 可以把监听和 源分离，看看例子

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
static <Response> ActionListener<Response> wrap(CheckedConsumer<Response, ? extends Exception> onResponse,
           Consumer<Exception> onFailure) {
       return new ActionListener<Response>() {
           @Override
           public void onResponse(Response response) {
               try {
                   onResponse.accept(response);
               } catch (Exception e) {
                   onFailure(e);
               }
           }

           @Override
           public void onFailure(Exception e) {
               onFailure.accept(e);
           }
       };
   }

下面我主要看看 HttpChannelTaskHandler.INSTANCE.execute 这行代码，这个执行任务的代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
<Response extends ActionResponse> void execute(NodeClient client, HttpChannel httpChannel, ActionRequest request,
                                                   ActionType<Response> actionType, ActionListener<Response> listener) {

        CloseListener closeListener = httpChannels.computeIfAbsent(httpChannel, channel -> new CloseListener(client));
      //任务Holder
        TaskHolder taskHolder = new TaskHolder();
    //执行任务
        Task task = client.executeLocally(actionType, request,
            new ActionListener<>() {
                @Override
                public void onResponse(Response searchResponse) {
                    try {
                        closeListener.unregisterTask(taskHolder);
                    } finally {
                        listener.onResponse(searchResponse);
                    }
                }

                @Override
                public void onFailure(Exception e) {
                    try {
                        closeListener.unregisterTask(taskHolder);
                    } finally {
                        listener.onFailure(e);
                    }
                }
            });
    // 注册任务 的关闭监听
        closeListener.registerTask(taskHolder, new TaskId(client.getLocalNodeId(), task.getId()));
        closeListener.maybeRegisterChannel(httpChannel);
    }

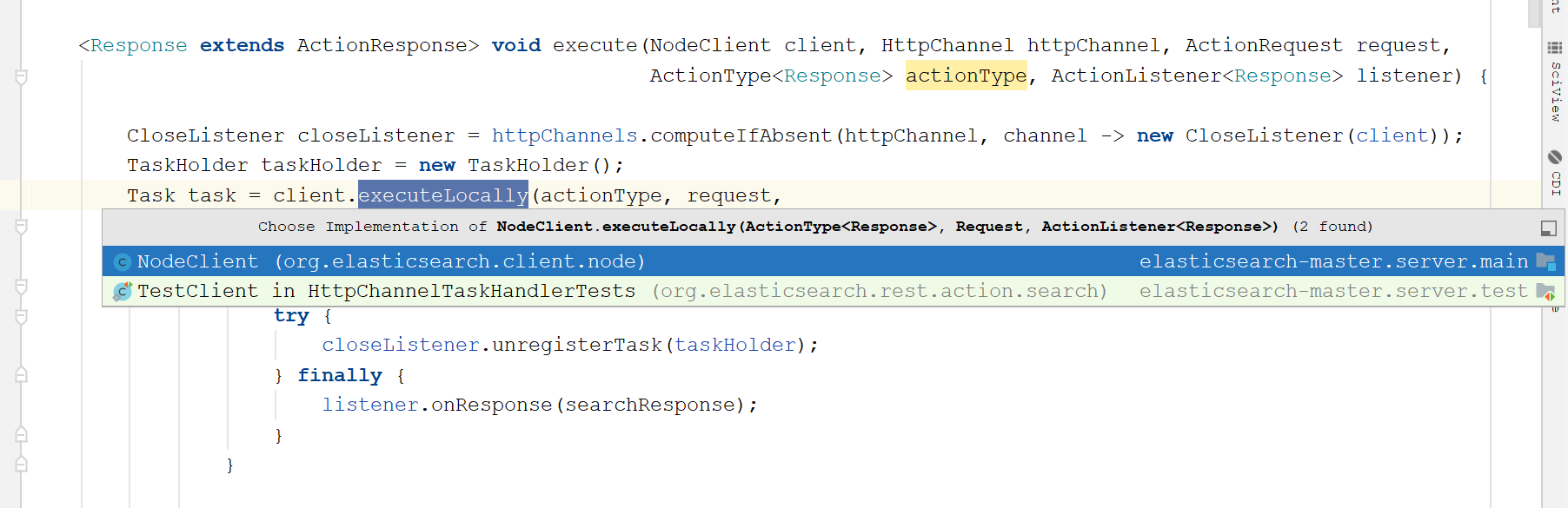

查看这个executeLocally 的实现，NodeClient

查看 NodeClient executeLocally 方法

1
2
3
4
5
6
7
public <    Request extends ActionRequest,
               Response extends ActionResponse
           > Task executeLocally(ActionType<Response> action, Request request, ActionListener<Response> listener) {
       return taskManager.registerAndExecute("transport", transportAction(action), request,
           (t, r) -> listener.onResponse(r), (t, e) -> listener.onFailure(e));
   }

在 NodeClient 内部有一个 taskManager 任务管理器，注册并执行任务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public <Request extends ActionRequest, Response extends ActionResponse>
   Task registerAndExecute(String type, TransportAction<Request, Response> action, Request request,
                           BiConsumer<Task, Response> onResponse, BiConsumer<Task, Exception> onFailure) {
      //注册任务 //这里的 action.actionName
       Task task = register(type, action.actionName, request);
       // NOTE: ActionListener cannot infer Response, see https://bugs.openjdk.java.net/browse/JDK-8203195
    //执行任务
       action.execute(task, request, new ActionListener<Response>() {
           @Override
           public void onResponse(Response response) {
               try {
                   //取消注册
                   unregister(task);
               } finally {
                   onResponse.accept(task, response);
               }
           }

           @Override
           public void onFailure(Exception e) {
               try {
                   unregister(task);
               } finally {
                   onFailure.accept(task, e);
               }
           }
       });
       return task;
   }

在往下面看

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public final void execute(Task task, Request request, ActionListener<Response> listener) {
    //各种校验
       ActionRequestValidationException validationException = request.validate();
       if (validationException != null) {
           listener.onFailure(validationException);
           return;
       }

       if (task != null && request.getShouldStoreResult()) {
           listener = new TaskResultStoringActionListener<>(taskManager, task, listener);
       }
   //创建 请求Filter连 类似 servlet Filter,这里是用数组实现的，就不在细看了
       RequestFilterChain<Request, Response> requestFilterChain = new RequestFilterChain<>(this, logger);

       requestFilterChain.proceed(task, actionName, request, listener);
   }

在看 proceed方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Override
       public void proceed(Task task, String actionName, Request request, ActionListener<Response> listener) {
           int i = index.getAndIncrement();
           try {
               if (i < this.action.filters.length) {
                   this.action.filters[i].apply(task, actionName, request, listener, this);
                   //走完前面的filter 后最后执行 doExecute方法
               } else if (i == this.action.filters.length) {
                   this.action.doExecute(task, request, listener);
               } else {
                   listener.onFailure(new IllegalStateException("proceed was called too many times"));
               }
           } catch(Exception e) {
               logger.trace("Error during transport action execution.", e);
               listener.onFailure(e);
           }
       }

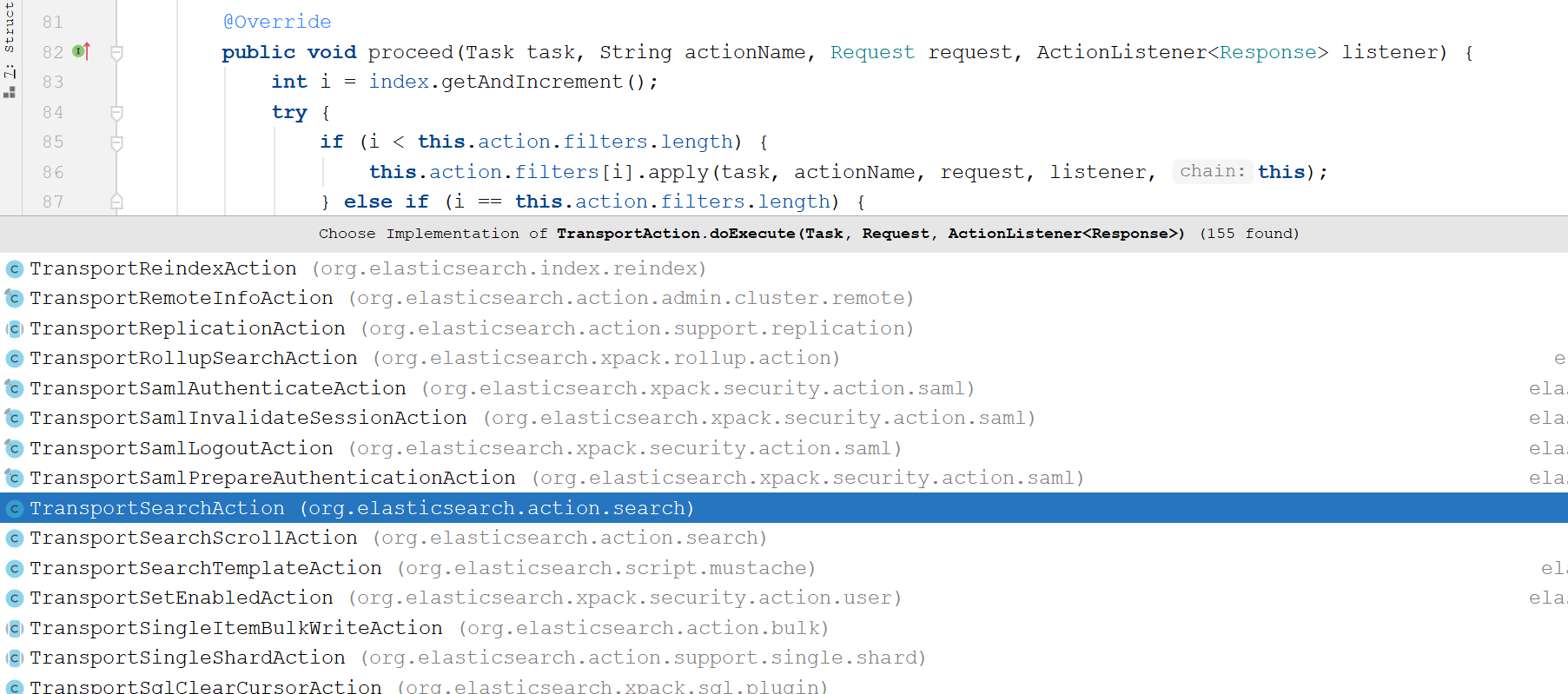

我们就直接看 org.elasticsearch.action.search.TransportSearchAction#doExecute 这里是模板方法，

代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
@Override
  protected void doExecute(Task task, SearchRequest searchRequest, ActionListener<SearchResponse> listener) {
   ...
      ActionListener<SearchSourceBuilder> rewriteListener = ActionListener.wrap(source -> {
          if (source != searchRequest.source()) {
              // only set it if it changed - we don't allow null values to be set but it might be already null. this way we catch
              // situations when source is rewritten to null due to a bug
              searchRequest.source(source);
          }
          final ClusterState clusterState = clusterService.state();
          final Map<String, OriginalIndices> remoteClusterIndices = remoteClusterService.groupIndices(searchRequest.indicesOptions(),
              searchRequest.indices());
          OriginalIndices localIndices = remoteClusterIndices.remove(RemoteClusterAware.LOCAL_CLUSTER_GROUP_KEY);
          //判断所以是否在远程， 可以猜测，上面两行代码就是判断 索引是否在 当前节点，
          //如是 就执行 executeLocalSearch
          if (remoteClusterIndices.isEmpty()) {
              executeLocalSearch(task, timeProvider, searchRequest, localIndices, clusterState, listener);
          } else {
              if (shouldMinimizeRoundtrips(searchRequest)) {
                  ccsRemoteReduce(searchRequest, localIndices, remoteClusterIndices, timeProvider, searchService::createReduceContext,
                      remoteClusterService, threadPool, listener,
                      (r, l) -> executeLocalSearch(task, timeProvider, r, localIndices, clusterState, l));
              } else {
                  AtomicInteger skippedClusters = new AtomicInteger(0);
                  //远程收集检索的分片，
                  collectSearchShards(searchRequest.indicesOptions(), searchRequest.preference(), searchRequest.routing(),
                      skippedClusters, remoteClusterIndices, remoteClusterService, threadPool,
                   //添加监听，当获取分片信息完成后执行监听的内容，进行查询。
                      ActionListener.wrap(
                          searchShardsResponses -> {
                              List<SearchShardIterator> remoteShardIterators = new ArrayList<>();
                              Map<String, AliasFilter> remoteAliasFilters = new HashMap<>();
                              BiFunction<String, String, DiscoveryNode> clusterNodeLookup = processRemoteShards(
                                  searchShardsResponses, remoteClusterIndices, remoteShardIterators, remoteAliasFilters);
                              int localClusters = localIndices == null ? 0 : 1;
                              int totalClusters = remoteClusterIndices.size() + localClusters;
                              int successfulClusters = searchShardsResponses.size() + localClusters;
                //执行查询  executeLocalSearch 最终也是执行的 这个方法
                              executeSearch((SearchTask) task, timeProvider, searchRequest, localIndices,
                                  remoteShardIterators, clusterNodeLookup, clusterState, remoteAliasFilters, listener,
                                  new SearchResponse.Clusters(totalClusters, successfulClusters, skippedClusters.get()));
                          },
                          listener::onFailure));
              }
          }
      }, listener::onFailure);
      if (searchRequest.source() == null) {
          rewriteListener.onResponse(searchRequest.source());
      } else {
          Rewriteable.rewriteAndFetch(searchRequest.source(), searchService.getRewriteContext(timeProvider::getAbsoluteStartMillis),
              rewriteListener);
      }
  }

在这里 ActionListener 这个接口 在 es里用的比较普遍，很多程序都是通过包装原有监听来进行添加额外操作的，可以学习一下，平时我们对一个 函数添加runBefore 操作的时候大都是写在 已经搭好的 算法中，这里ActionListener 是使用的装饰模式来进行增强的，源码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
static <Response> ActionListener<Response> runBefore(ActionListener<Response> delegate, CheckedRunnable<?> runBefore) {
       return new ActionListener<>() {
           @Override
           public void onResponse(Response response) {
               try {
                   runBefore.run();
               } catch (Exception ex) {
                   delegate.onFailure(ex);
                   return;
               }
               delegate.onResponse(response);
           }

           @Override
           public void onFailure(Exception e) {
               try {
                   runBefore.run();
               } catch (Exception ex) {
                   e.addSuppressed(ex);
               }
               delegate.onFailure(e);
           }
       };
   }

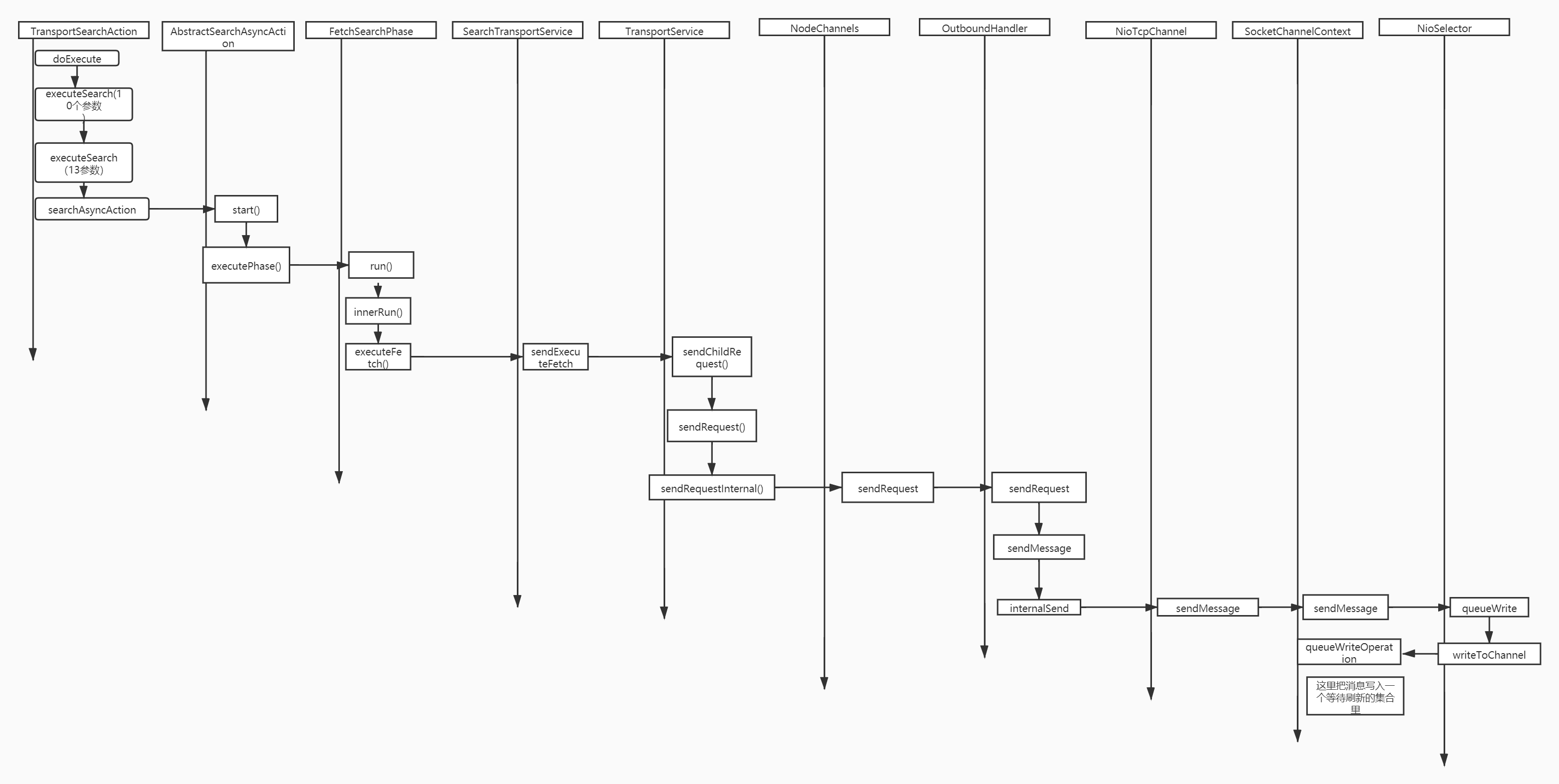

接下来的流程代码比较简单就用时序图表示

最终都是通过这里把数据返回给客户端，或者是发送请求到其他节点查询数据。底层有Nio实现和netty 不同的实现方式。
